Simplex Optical Cable 2000M LSZH/PVC/PU

Brand Name : DF/OEM/Nuetral

Model Number : TK-PC-48F-SC-OS2-50M

Certification : CE/ROHS/REACH/ISO9001/ISO14001

Place of Origin : China, Shenzhen

MOQ : negotiable

Price : negotiable denpend on QTY

Payment Terms : Western Union, T/T, MoneyGram/Paypal

Supply Ability : 1000PCS/Day

Delivery Time : 5-9 working days depends on QTY

Packaging Details : Blister box+Carton

Product Name : Simplex Optical Cable

Fiber count : 1

Core reinforce : Aramid yarn

Sheath material : LSZH/PVC

Outside diameter (mm) : 1.6-3.0mm

Cable weight : 2.6-7.5(kg/km)

Color : White or Customized

Wavelength : 1310nm, 1550nm

Diameter(±1µm) : 125μm

Coating diameter(±5µm) : 250μm

Operation Temperature : -20℃~70℃

Length : 2000M or Customized

Fiber Brand : Corning, YOFC, OFS, Draka

Contact Now

Simplex Optical Cable 2000M LSZH/PVC/PU
Product Description
Simplex cable use Φ600μm or Φ900μm tight buffer fiber as optical communication medium,The tight buffer fiber wrapped with a layer of aramid yarn as strength member units, which is most extruded to produce a layer of (PVC) or low-smoke halogen-free material (LSZH, low-smoke, halogen-free, flame retardant) jacket.
Product Applications
  • Optical fiber active connection jumper or tail fiber
  • Indoor shaft stage and forced ventilation level wiring;
  • Interconnection of instruments and communication equipment
Product Features
  • Adopt a tight sleeve optical fiber for easy stripping;
  • Aramid yarn reinforced element makes the optical cable have excellent tensile resistance;
  • Good performance of flame-retardant,low induced attenuation within the operating temperature range.
  • Meet various requirements of market and clients

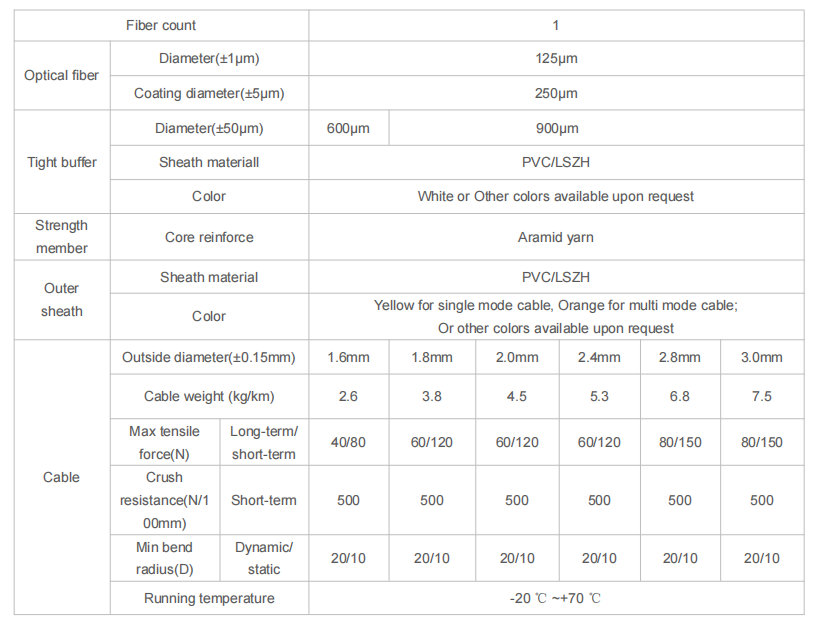

Optical Parameter and Properties
Optical fiber type Test wavelength Decay Full injection bandwidth (MHZ.km) Effective modal bandwidth (MHZ.km) Minimum bending radius(mm)
Typical (dB/km) Maximum (dB/km)
G652D 1310/1550nm 0.36/0.22 0.5/0.4 ... ... 16
G657A1 0.36/0.22 0.5/0.4 ... ... 10
G657A2 0.36/0.22 0.5/0.4 ... ... 7.5
62.5/125 850/1300nm 3.0/1.0 3.5/1.5 ≥200/500 ... 30
50/125 3.0/1.0 3.5/1.5 ≥500/500 ... 30
OM3 3.0/1.0 3.5/1.5 ≥1500/500 ≥2000/... 7.5
OM4 3.0/1.0 3.5/1.5 ≥3500/500 ≥4700/... 7.5
OM5 850/953nm/1300nm 3.0/.../1.0 3.5/.../1.5 ≥3500/1850/500 ≥4700/2470/... 7.5

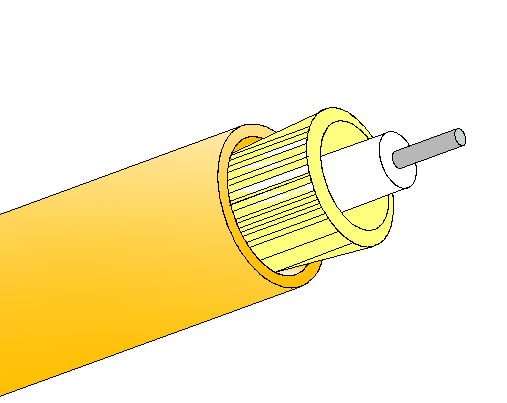

Product Structure
Simplex Optical Cable 2000M LSZH/PVC/PU
Product Picture
Simplex Optical Cable 2000M LSZH/PVC/PU
Why choose TAKFLY?
Professional manufacturer:
  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experienced
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery:
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
Simplex Optical Cable 2000M LSZH/PVC/PU
