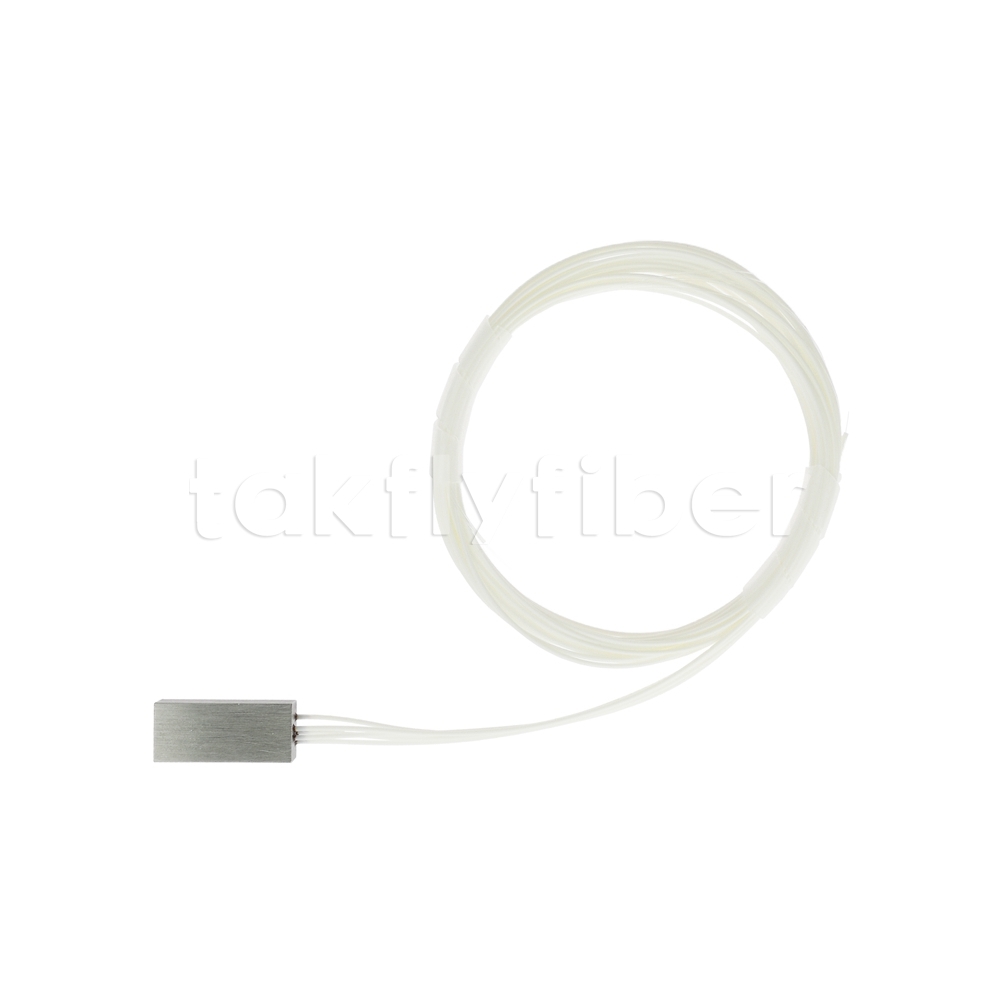

4CH Ultra Compact CWDM Module Operation Wavelengths 1470-1610nm Isolation Adjacent ≥30dB

  • 1
  • 2
  • 3

Brand Name : DF, TAKFLY, OEM

Model Number : TK-UT-CCWDM-4CH

Certification : CE, ROHS, REACH, ISO9001, ISO14001

Place of Origin : Made in China

MOQ : 1

Price : 145.99

Payment Terms : T/T,Western Union

Supply Ability : 500pcs per week

Delivery Time : 7-9 working days

Packaging Details : Inner box +carton

Operation Wavelengths : 1470-1610nm

Channel Number : 4

Mux or Demux Insertion Loss : ≤1.2

Isolation Adjacent : ≥30dB

Isolation Non-adjacent : ≥40dB

Polarization Dependent Loss : ≤0.1

Return Loss : ≥45dB

Dimension : 25x10.8x6.5mm

Product Name : 4CH Ultra Compact CWDM Module

Contact Now

4CH Ultra Compact CWDM Module


Features

  • Low Insertion Loss
  • Wide pass band
  • High Channel Isolation
  • High Stability and reliability
  • Epoxy-free on Optical Path


Applications

  • 4CH Ultra Compact CWDM Module Operation Wavelengths 1470-1610nm Isolation Adjacent ≥30dB Line Monitoring
  • 4CH Ultra Compact CWDM Module Operation Wavelengths 1470-1610nm Isolation Adjacent ≥30dB WDM Network
  • 4CH Ultra Compact CWDM Module Operation Wavelengths 1470-1610nm Isolation Adjacent ≥30dB Telecommunication
  • 4CH Ultra Compact CWDM Module Operation Wavelengths 1470-1610nm Isolation Adjacent ≥30dB Cellular Application
  • 4CH Ultra Compact CWDM Module Operation Wavelengths 1470-1610nm Isolation Adjacent ≥30dB Fiber Optical amplifier
  • 4CH Ultra Compact CWDM Module Operation Wavelengths 1470-1610nm Isolation Adjacent ≥30dB Acess Network


Product Code

Item Number

Customer Part Number

Future-Optics Part Number

Description

1

NA

NA

4CH CWDM MODULE, 1470-1610nm,G657 A2 Fiber, 900um loose tube,-40~+85℃


Specification

2.1 4CH CWDM Specifications

Parameters

Specifications

Unit

Operation Wavelengths

1470-1610nm

Channel Number

4

CH

Channel Center Wavelengths (nm)

ITU


Channel Passband(0.5dB)

λc ±6.5

nm

Mux or Demux Insertion Loss

≤1.2

dB

Isolation

Adjacent

≥30

dB

Non-adjacent

≥40

dB

Polarization Dependent Loss

≤0.1

dB

Ripple

≤0.5

dB

Return Loss

≥45

dB

Dimension

25x10.8x6.5

mm

Fiber Type

G657 A2, 900um jacket

Fiber Length

>0.5

M

Connector

FC/APC

Operating Temperature

-40~ +85

.C

Storage Temperature

-40 ~ +85

.C

Note:The above parameters without connector, a pair of connector loss is 0.25dB


2.2 Schematic Drawing and Dimension

4CH Ultra Compact CWDM Module Operation Wavelengths 1470-1610nm Isolation Adjacent ≥30dB

4CH Ultra Compact CWDM Module Operation Wavelengths 1470-1610nm Isolation Adjacent ≥30dB
