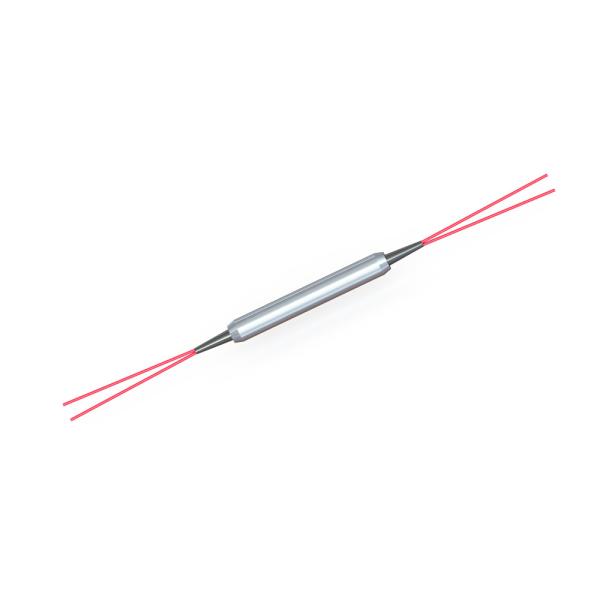

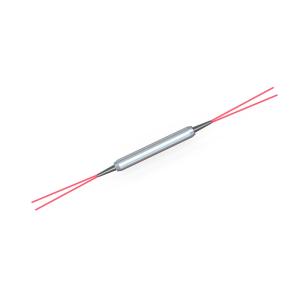

Tap & Isolator & WDM Hybrid Polarization Insensitve T1064 / R980 T1550 / R980
DESCRIPTION:
Tap & Isolator & WDM Hybrid Polarization Insensitive T1064 / R980 T1550 / R980,
Max. Excess Loss, λc, at 23℃ (Input to Output) will be 3.5dB
Min. Signal Isolation, λc,±15 at 23℃(Output to Input) will be 5dB
Signal Center Wavelength: 1064nm
Signal Wavelength Range: 1020~1080nm
Pump Wavelength Range: 980±10nm
Features:
Low Insertion Loss, High Return Loss, High Extinction Ratio, High Isolation
Applications:
Communication Systems; Test Instruments; Fiber Sensor; Research
| Parameter | Unit | Value |
| Stage | - | Single | Dual | Single | Dual |
| Signal Center Wavelength | nm | 1064 | 1550 |
| Signal Wavelength Range | nm | 1020~1080 | 1520~1580 |
| Max. Excess Loss, λc, at 23℃ (Input to Output) | dB | 2.5 | 3.5 | 1.3 | 1.4 |
| Min. Signal Isolation, λc,±15 at 23℃(Output to Input) | dB | 35 | 45 | 31 | 45 |
| Isolation for Channels | Signal Channel | dB | 30 |
| Pump Channel | dB | 12 |
| Tap Ratio | % | 1~50 |
| Pump Wavelength Range | nm | 980±10 |
| Max. Insertion Loss (Pump Channel) | dB | 0.7 |
| Max. Polarization Dependent Loss at 23℃ | dB | 0.15 |
| Min. Return Loss | dB | 50 |
| Max. Optical Power(CW) | mW | 300 |
| Max. Tensile Load | N | 5 |
| Operating Temperature | ℃ | -5~+50 |
| Storage Temperature | ℃ | -40~+85 |
Option 1, Forward Pump
Input to Tap: PI
Pump to Output: PI
Input to Output: PS
Option 2, Forward pump
Input to Tap: PI
Pump to Output: PI
Input to Output: PI
Option 3, Backward pump
Input to Tap: PS
Pump to Input: PI
Input to Output: PS
PI: Polarization Insensitive
PS: Polarization Sensitive
Ordering Information:
PMIS-1111-2345-66
| 1111 | Center wavelength: | 1030=1030nm, |
| 2 | Stage: | S=Single-core stage, |
| 3 | Axis alignment | F=Slow axis working Fast axis blocked, B=Both of axis working |
| 4 | Pigtail type: | 0=250 bare fiber, 1=900um loose tube, 2=2.0mm loose tube, 3=3.0 loose tube |
| 5 | Fiber length: | 0=0.8m,1=1m |
| 66 | Connector type | 0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC |
