ST-ST Duplex G652D SM Pink Color LSZH Patch Cord Fiber Cable
Fiber Optic Patchcord Description:
Singlemode G652D fiber cable is a 9/125um type core, it can be YOFC brand core and Corning core. Regularly we will use the YOFC core to produce the fiber cable. G652D fiber cable's bending radius is 30mm, it is meet the demands of regular fiber solution distribution.
But if you have a request for the bending radius for the fiber cabling, you should let us know, so that we can recommend it to you. Such as, if you need to cable the patch cord in a very small space, and the patch cord bending radius needs to be smaller than 20mm, then you need the G657A1 fiber cable. Because the bending radius of the G657A1 cable is 10mm.
Fiber Optic Patchcord Applications:
- CATV
- Telecommunication networks
- Active device termination
- Local area networks(LANs)
- Data processing networks
- Test equipment
- Wide area networks(WANs)
Fiber Optic Patchcord Features:
- Low insertion loss and High reflection loss
- Good exchangeability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Fiber Optic Patchcord Specification:
| End face type | PC,UPC and APC |
| Fiber type | SM(G652,G655,G657)；MM(OM1-OM5) |
| Cable Diameter | 2.0,3.0 or customized(Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB ,APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
Operating
Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC,LSZH,TPU |
Bending radius
(Static/Dynamic | 10D/20D |
| Length | Customized |
Fiber Optic Patchcord types:
How to order Fiber Optic Patchcord
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female, fiber count (4/8/12/16/24/32 fiber )
Product Tags:
|
|

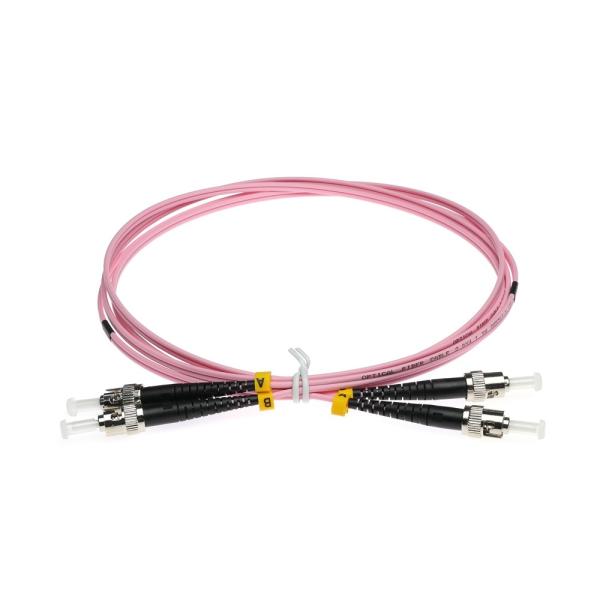

ST-ST Duplex G652D SM LSZH Fiber Patch Cord Pink Color Images
|
